Conveyor Belt Splicing Solutions

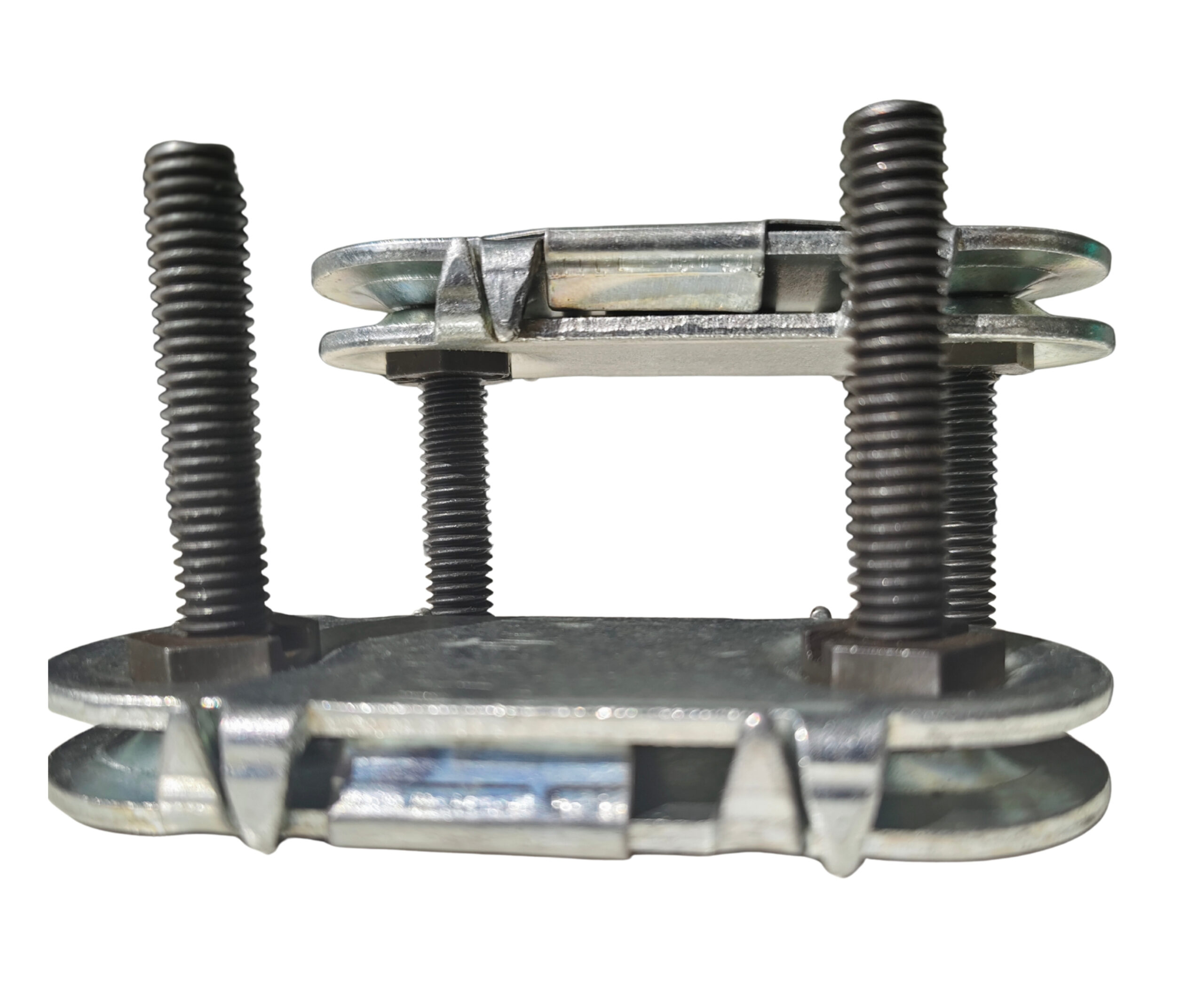

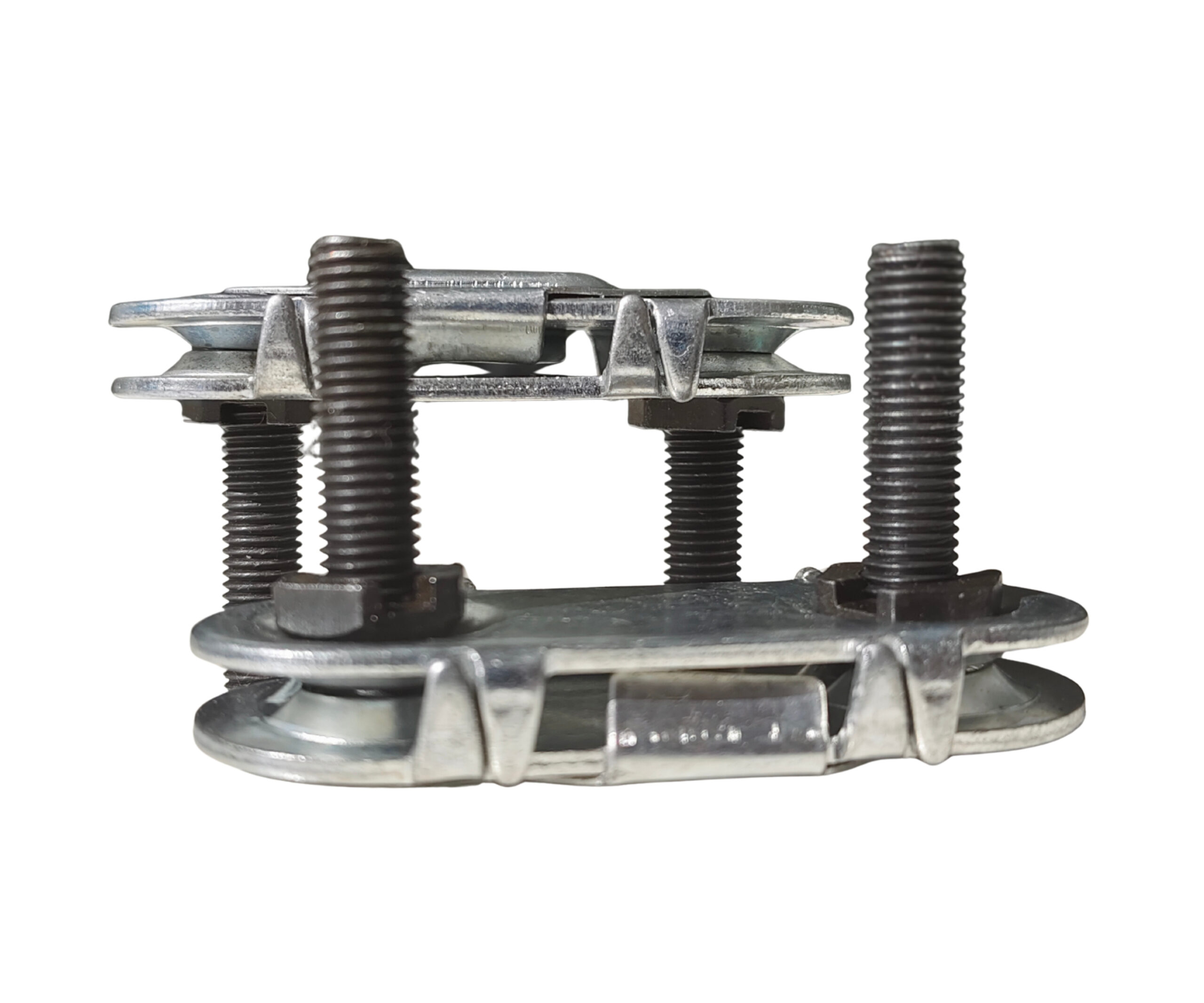

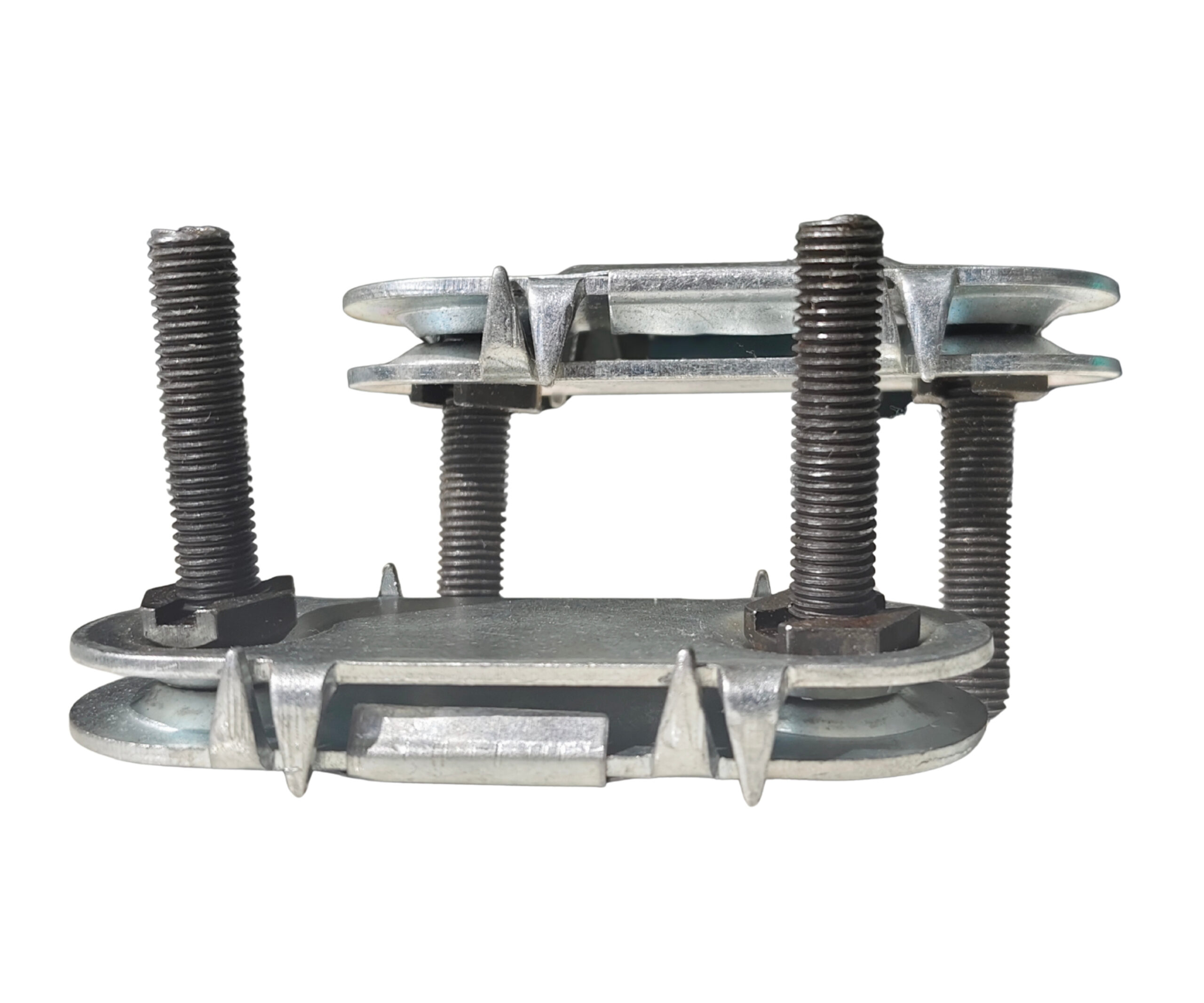

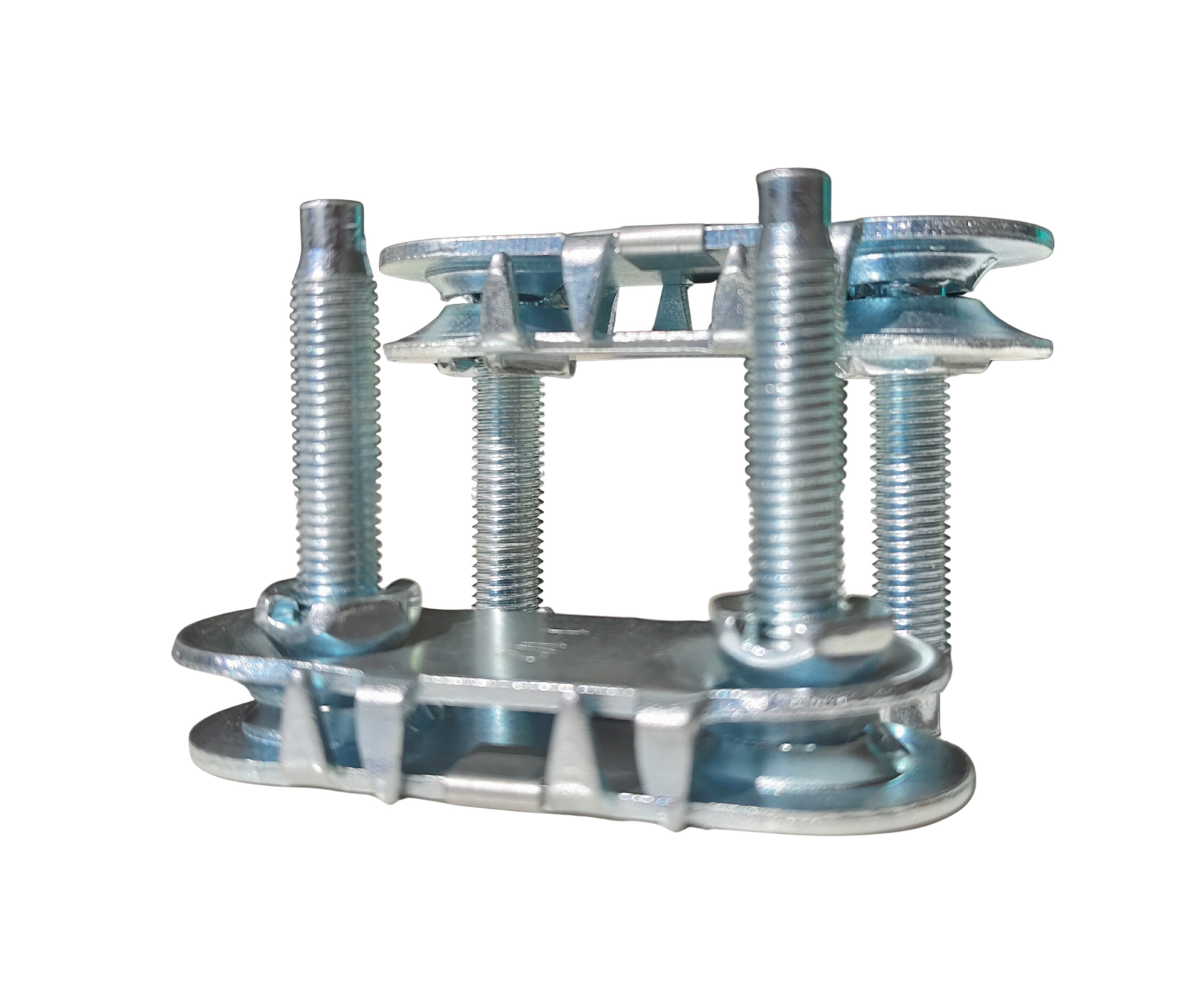

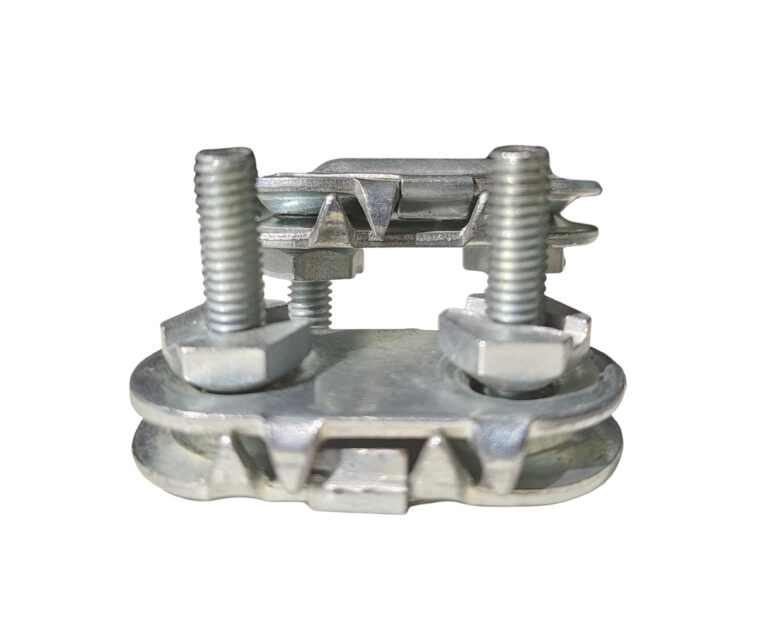

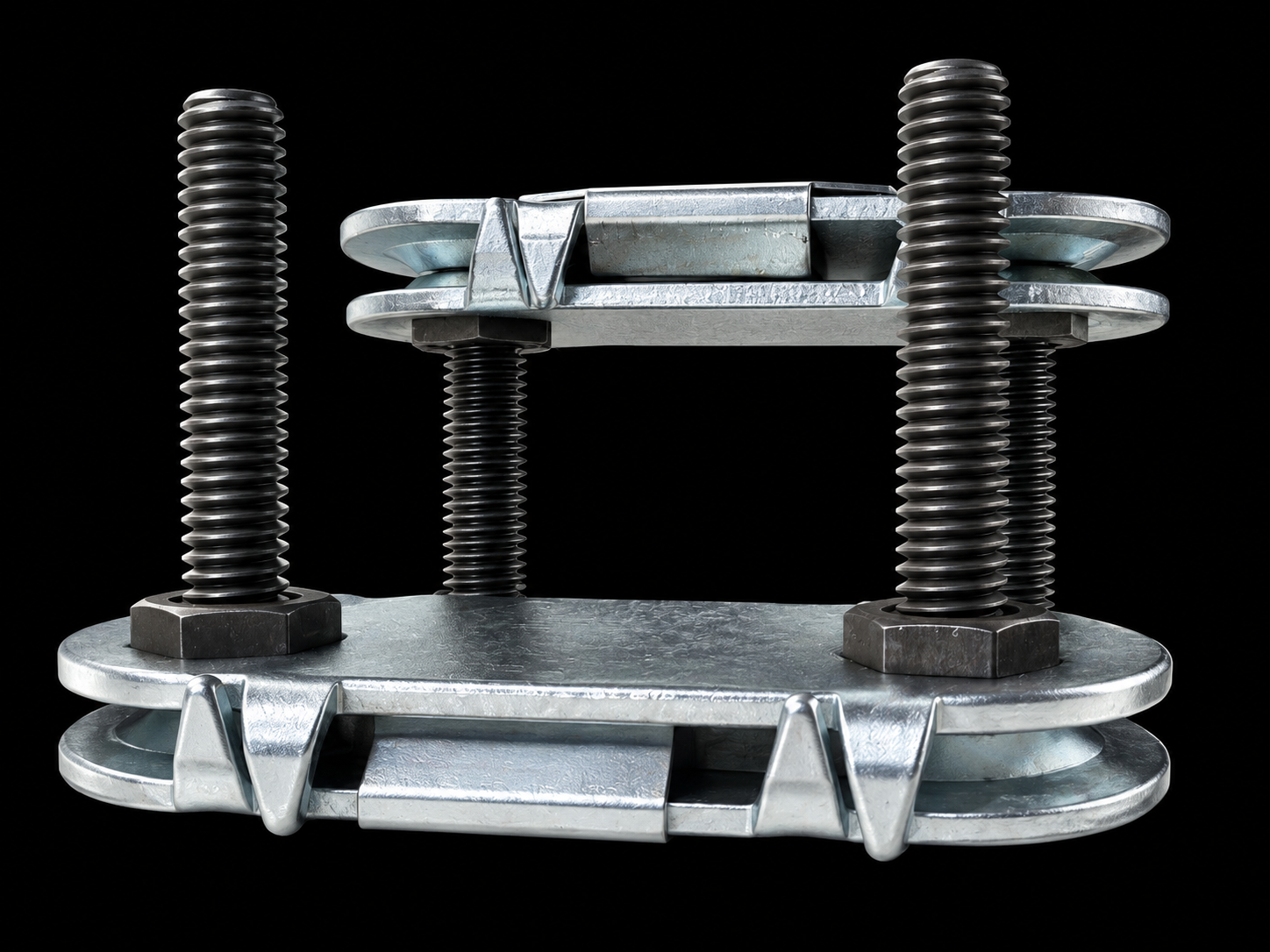

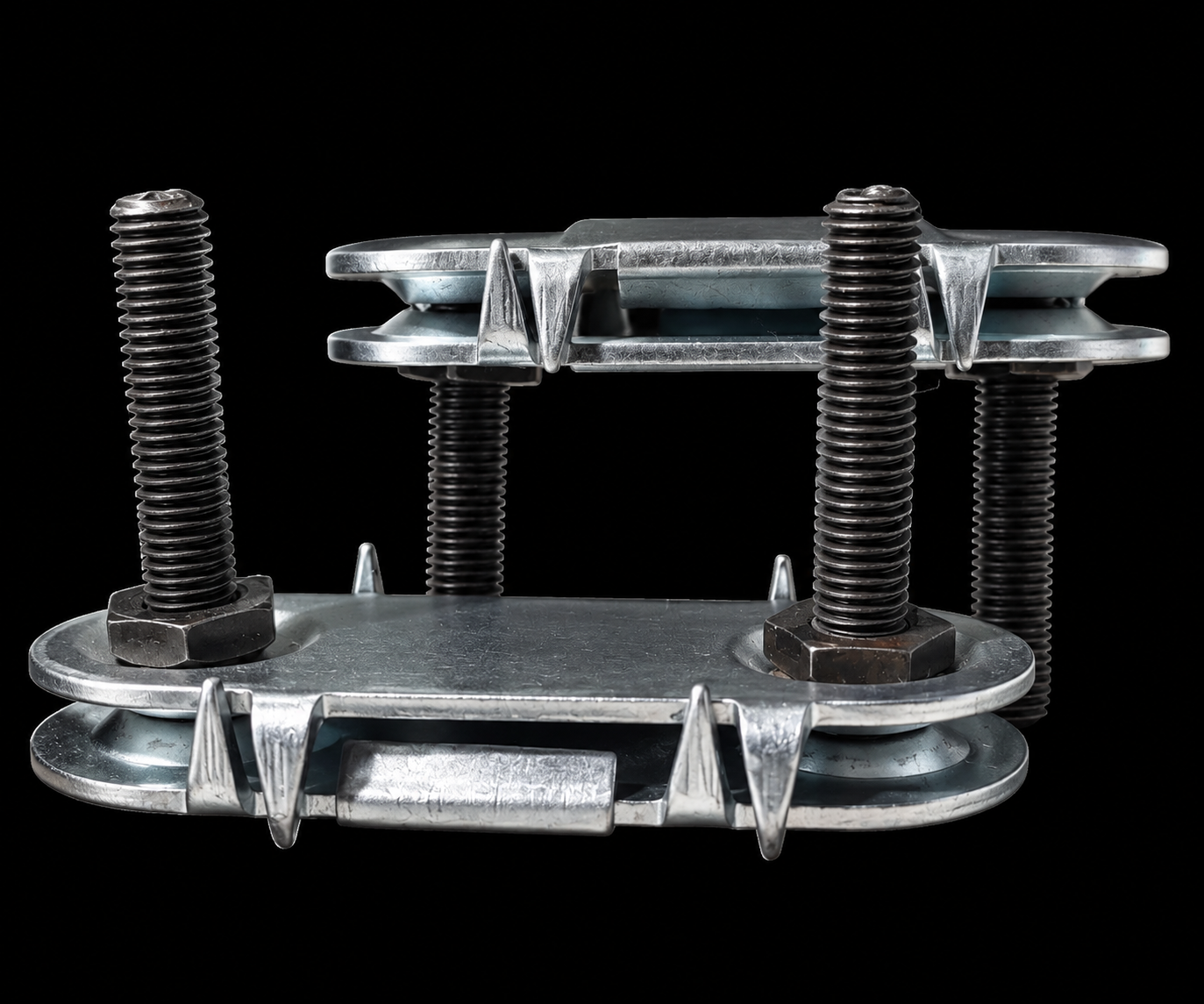

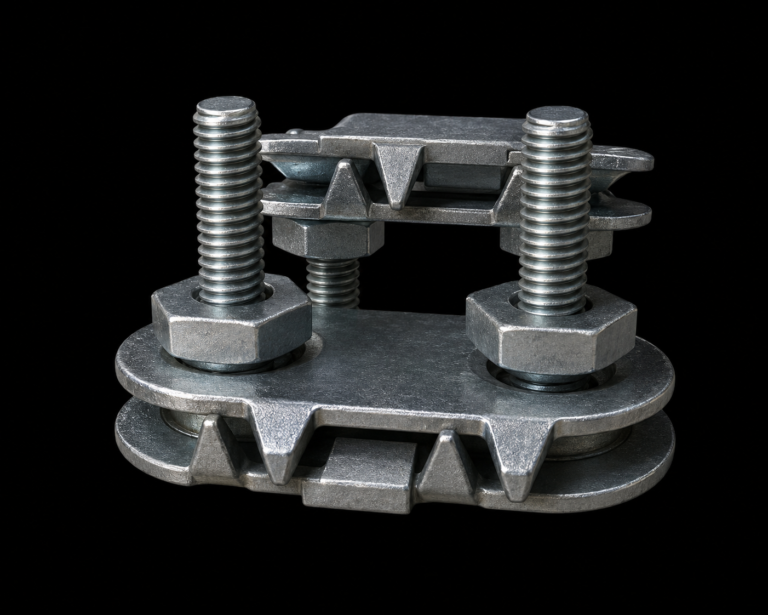

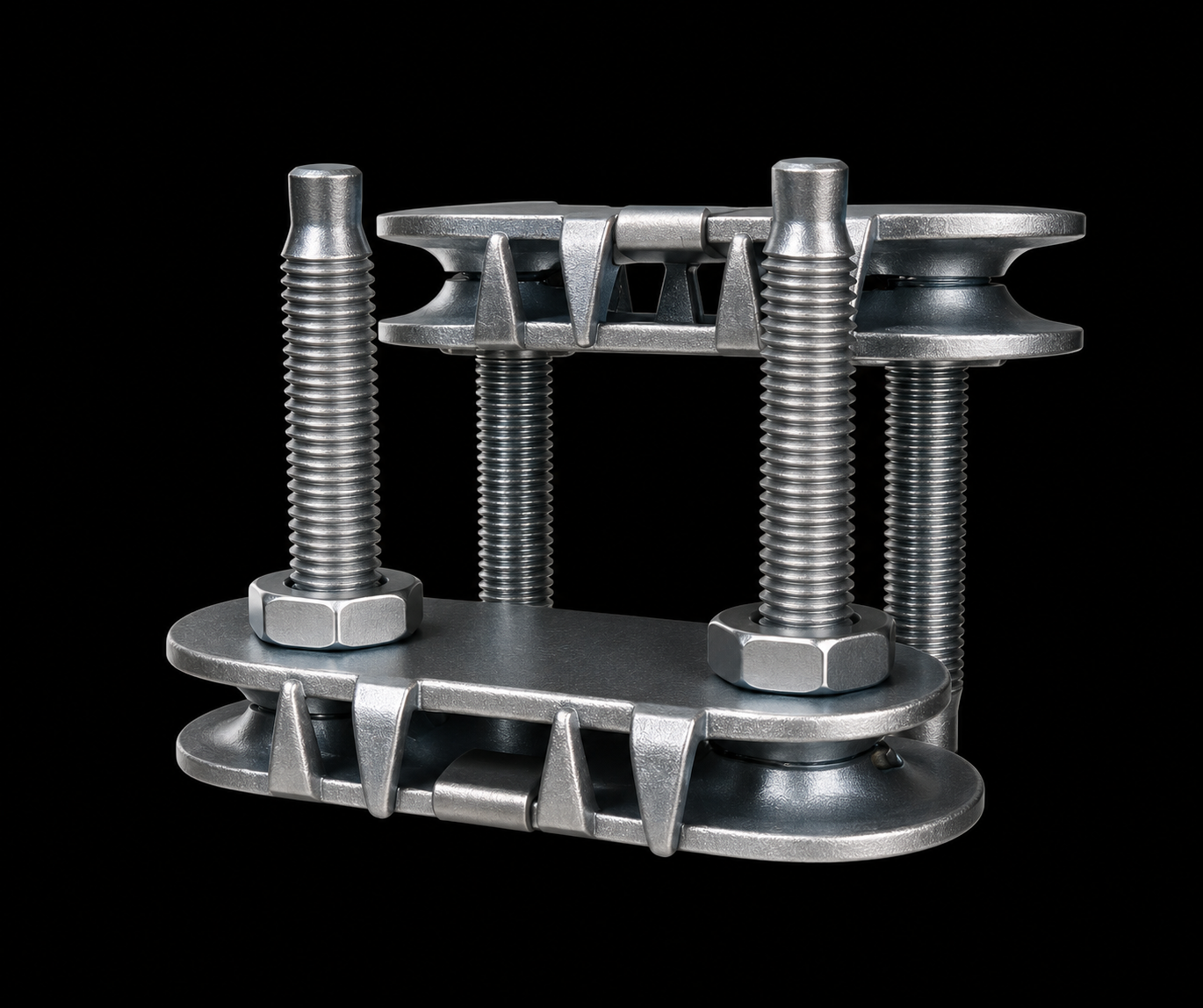

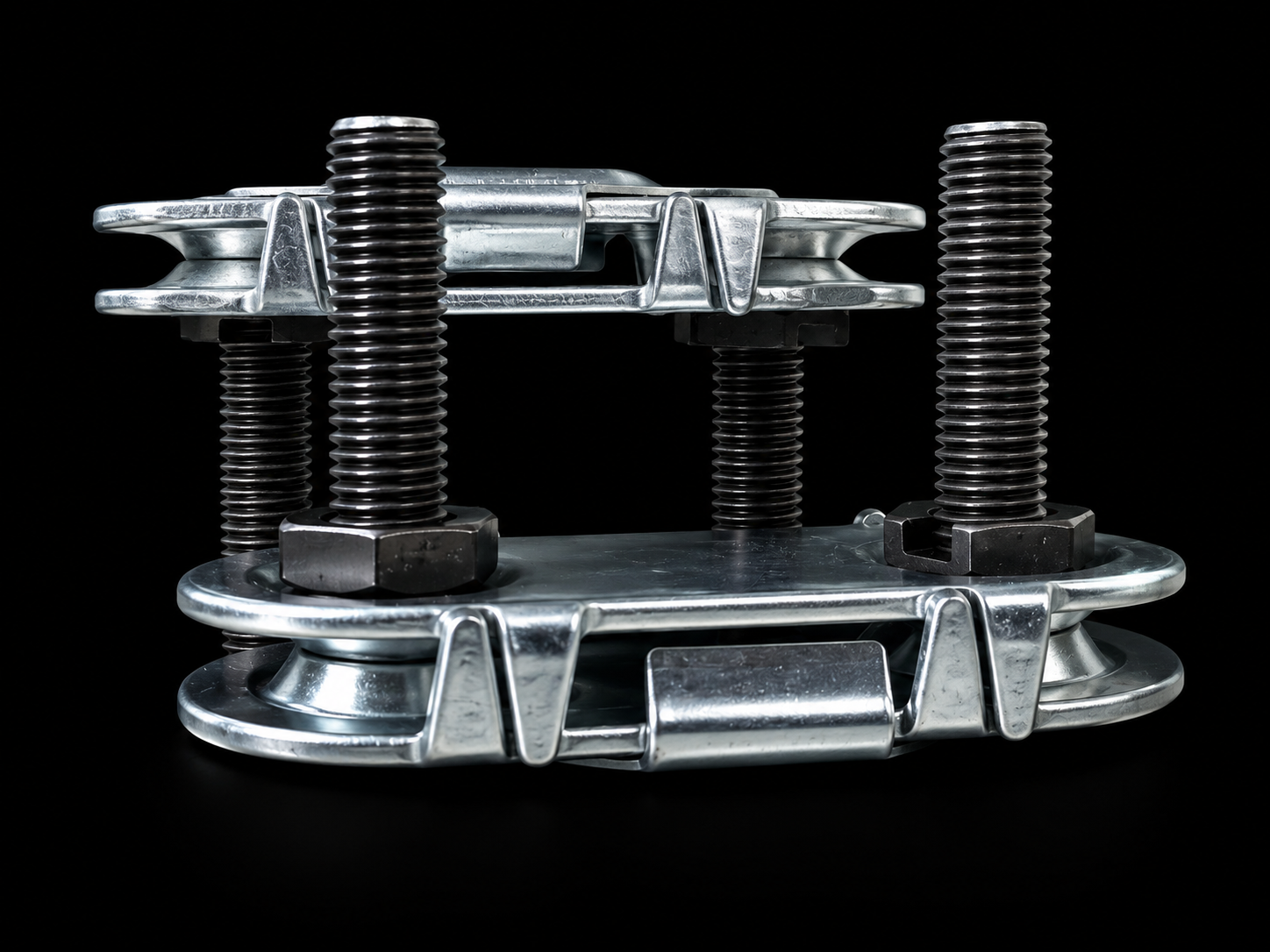

Alligron Belt Fastener
RX-FT 1 Inch Fastener
Pieces: 20
Belt Thickness Range: 3/16" to 7/16" (5 mm to 11 mm)
Belt Width Range: 300 mm to 1800 mm
Weight : 1.5 kg Aprx
RX-FT 1.5 Inch Fastener
Pieces: 20
Belt Thickness Range: 7/16" to 11/16" (11 mm to 17 mm)
Belt Width Range: 300 mm to 1800 mm
Weight : 2 kg Aprx
RX-FT 2 Inch Fastener
Pieces: 20
Belt Thickness Range: 9/16" to 13/16" (14 mm to 21 mm)
Belt Width Range: 300 mm to 1800 mm
Weight : 2.5 kg Aprx
RX-FT 2.5 Inch Fastener
Pieces: 20
Belt Thickness Range: 3/4" to 1" (19 mm to 25 mm)
Belt Width Range: 300 mm to 1800 mm
Weight : 5 kg Aprx
RX-FT 3 Inch Fastener
Pieces: 20
Belt Thickness Range: 5/16" & above (24 mm & above)
Belt Width Range: 300 mm to 1800 mm
Weight : 6 kg Aprx

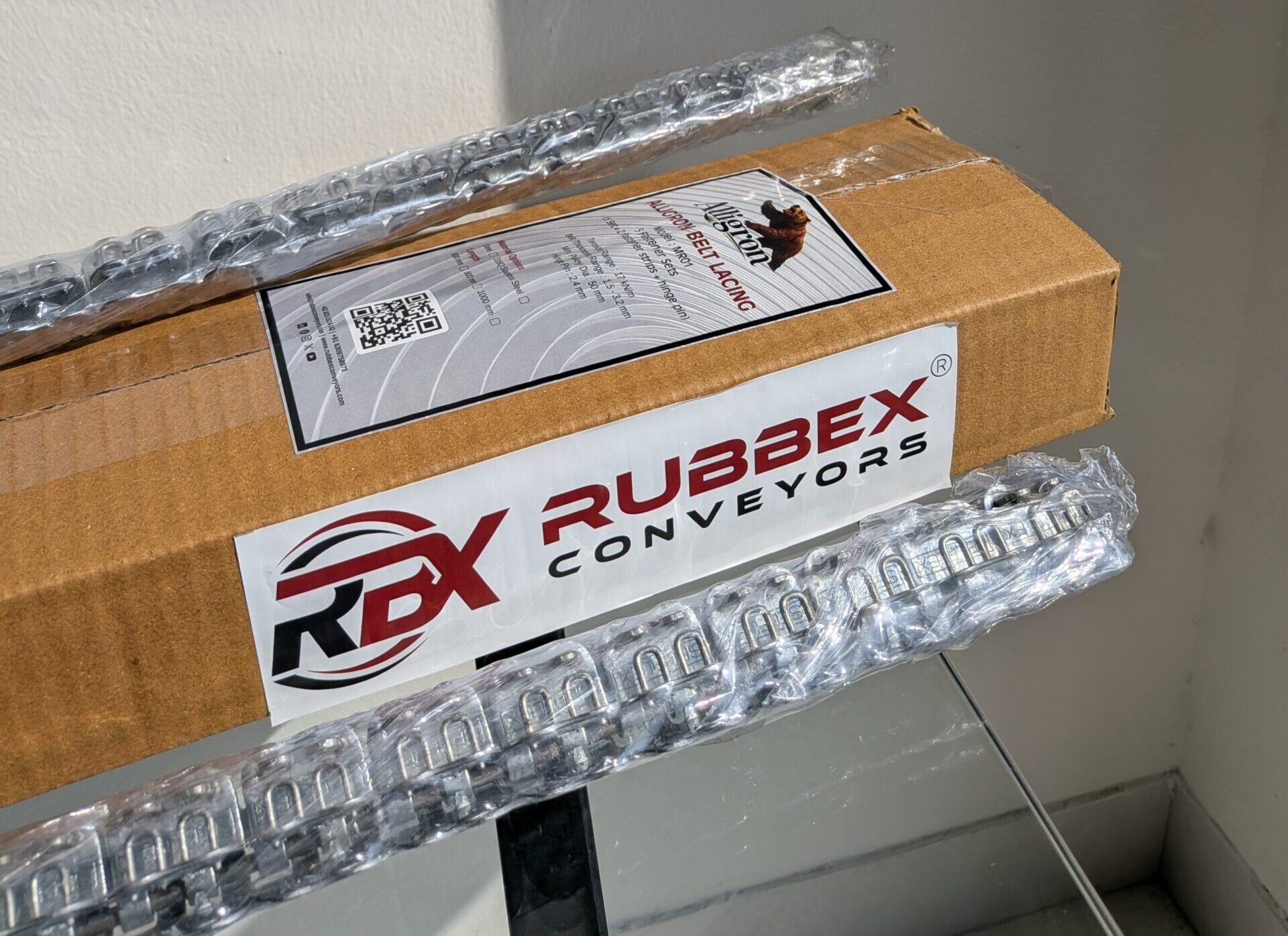

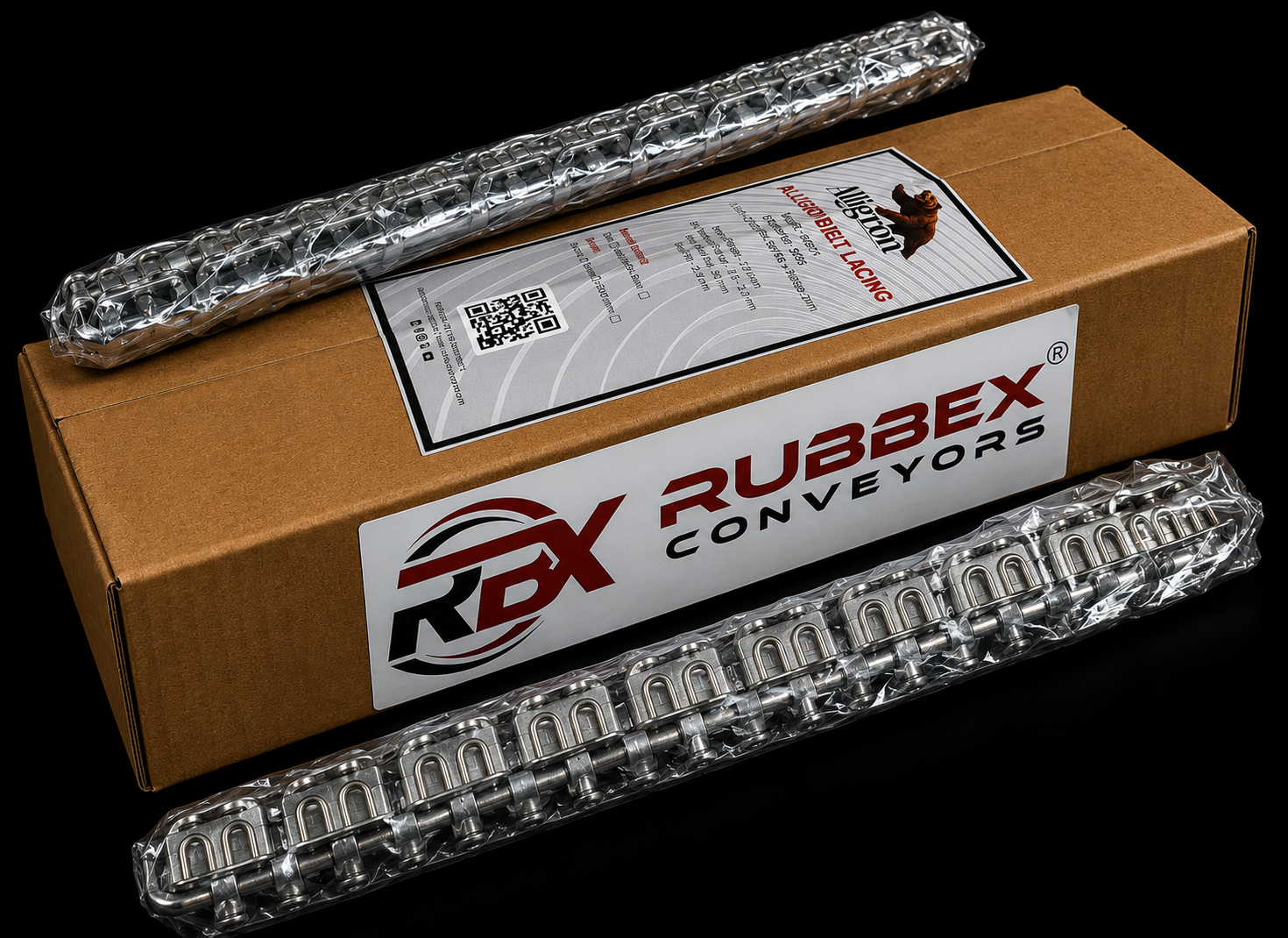

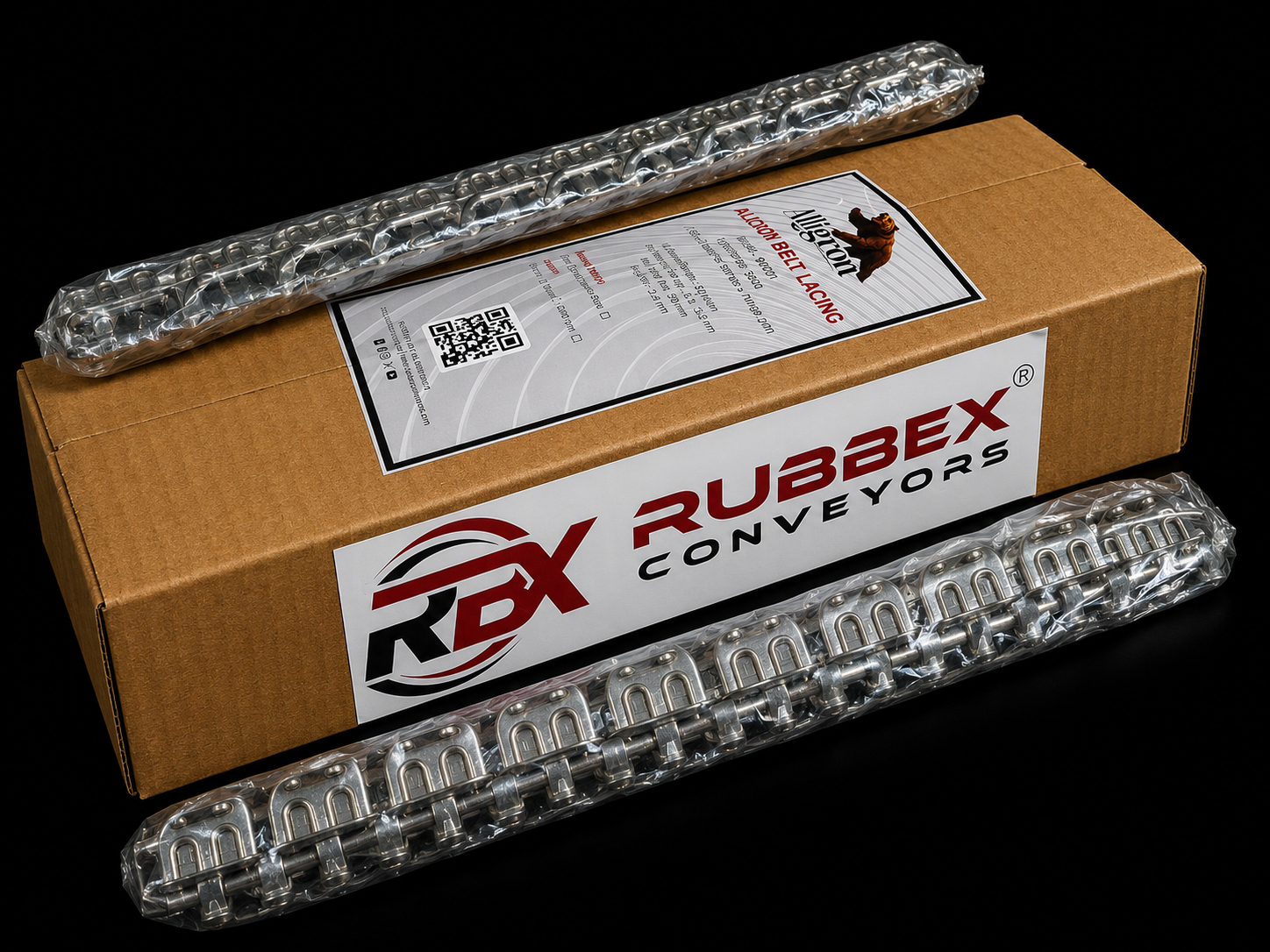

Alligron Belt Lacing
Model: MR01
Fastener Sets: 5 Sets (1 Set = 2 Fastener Strips + Hinge Pin)
Tension Range: 17 kN/m
Belt Thickness Range: 1.5 – 3.2 mm
Minimum Pulley Diameter: 50 mm
Hinge Pin Diameter: 2.4 mm
Material Options: Steel / 316Q Stainless Steel
Available Lengths: 600 / 800 / 1000 mm
Box Weight: 1.50 / 2.00 / 2.50 kg
Model: MR02
Fastener Sets: 5 Sets (1 Set = 2 Fastener Strips + Hinge Pin)
Tension Range: 28 kN/m
Belt Thickness Range: 3.2 – 5.5 mm
Minimum Pulley Diameter: 70 mm
Hinge Pin Diameter: 3.4 mm
Material Options: Steel / 316Q Stainless Steel
Available Lengths: 600 / 800 / 1000 mm
Box Weight: 2.00 / 2.60 / 3.20 kg
Model: MR03
Fastener Sets: 5 Sets (1 Set = 2 Fastener Strips + Hinge Pin)
Tension Range: 40 kN/m
Belt Thickness Range: 4.5 – 6.5 mm
Minimum Pulley Diameter: 100 mm
Hinge Pin Diameter: 5.0 mm
Material Options: Steel / 316Q Stainless Steel
Available Lengths: 600 / 800 / 1000 mm
Box Weight: 3.20 / 4.20 / 5.30 kg
Hot & Cold Vulcanizing Solution

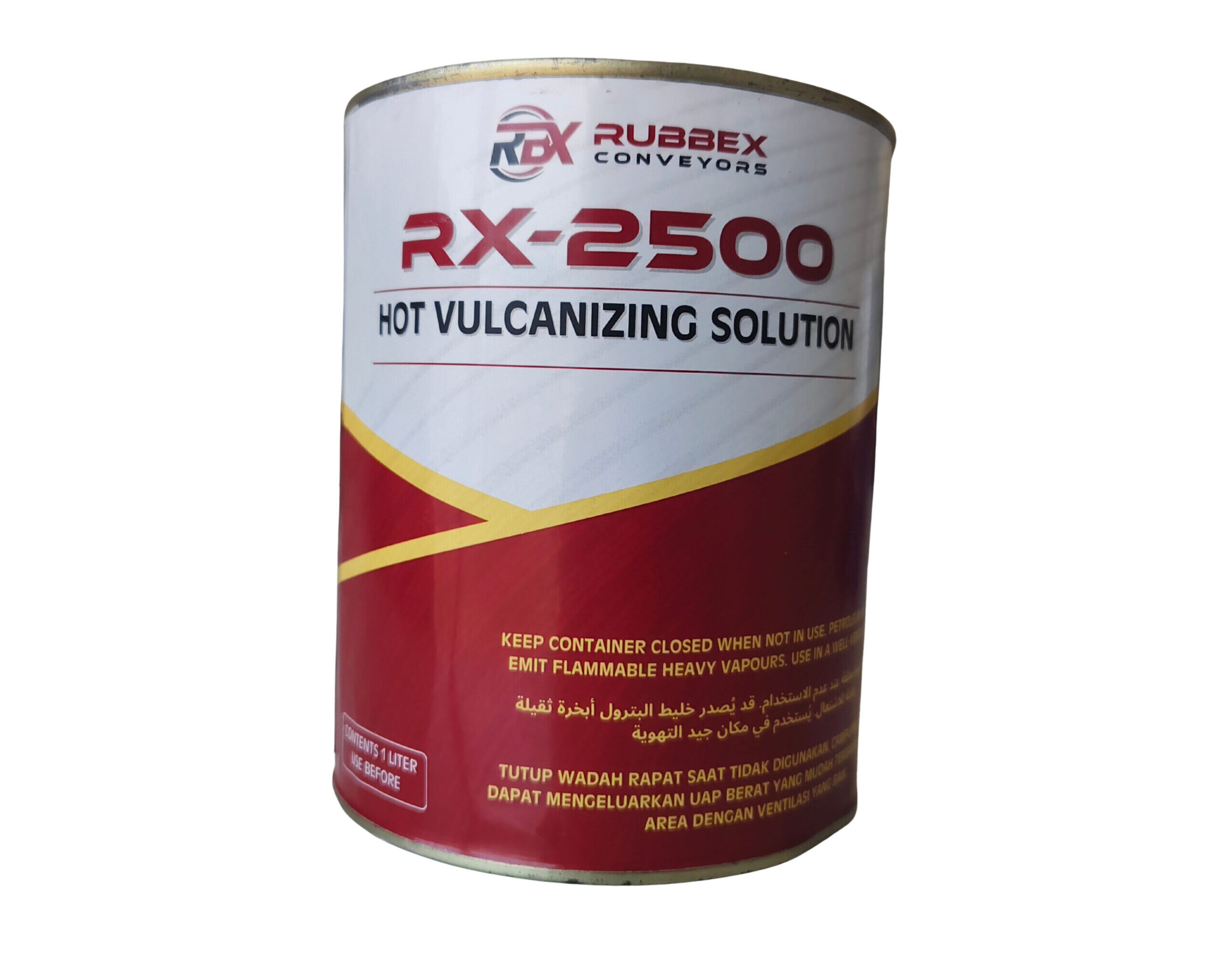

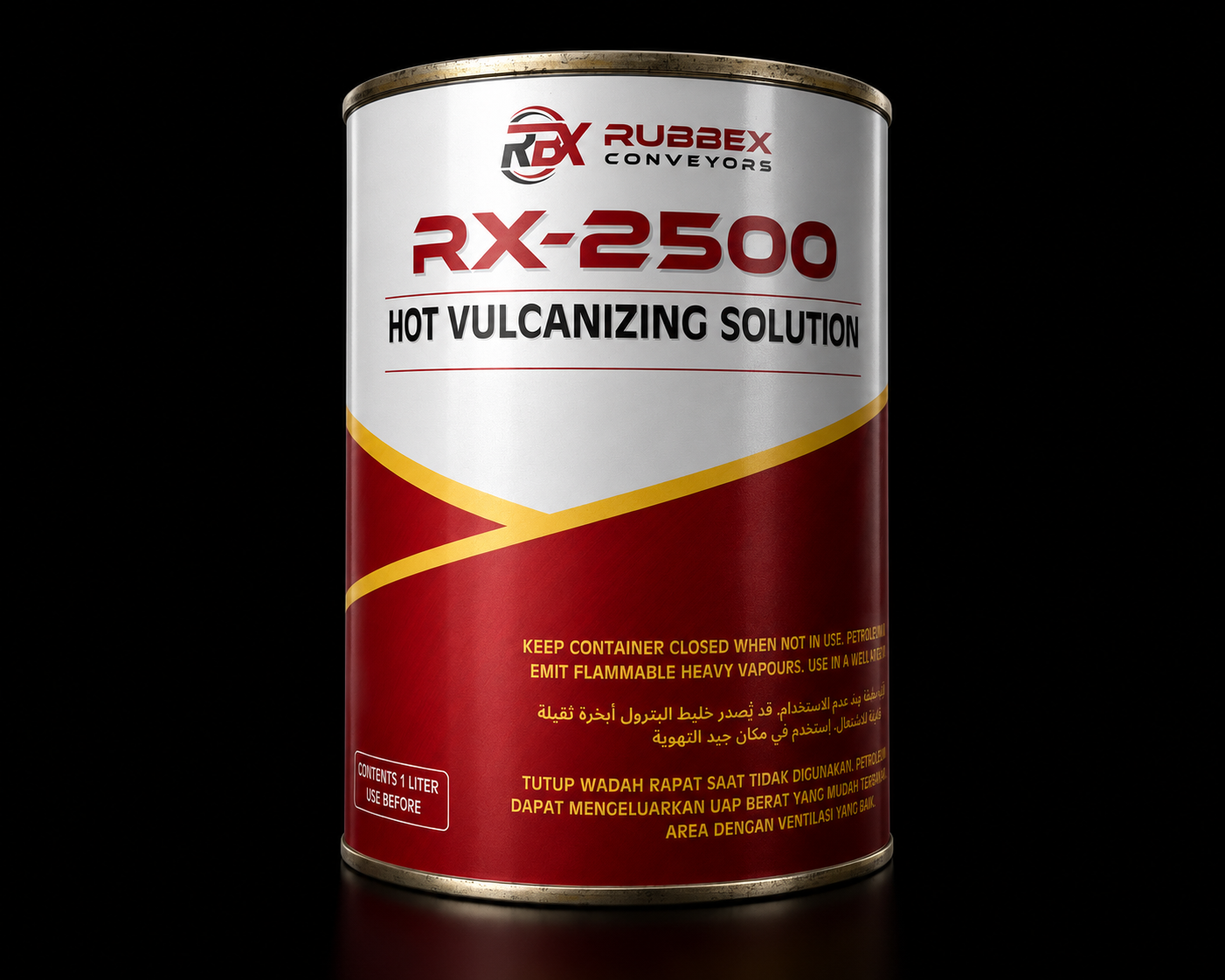

RX-2500 - HOT
Hot Vulcanizing Solution is a specially formulated rubber bonding cement used in the hot vulcanization process of conveyor belts. When applied with heat and pressure, it creates a permanent molecular bond, restoring the belt to its original strength and flexibility.
Extended Shelf Life – 14 Months Shelf Life
Superior Splicing Strength – High Bonding & Peel Strength
Minimizing Downtime – Fast Dispatch Commitment
After-Sales Support – Expert Application Guidance

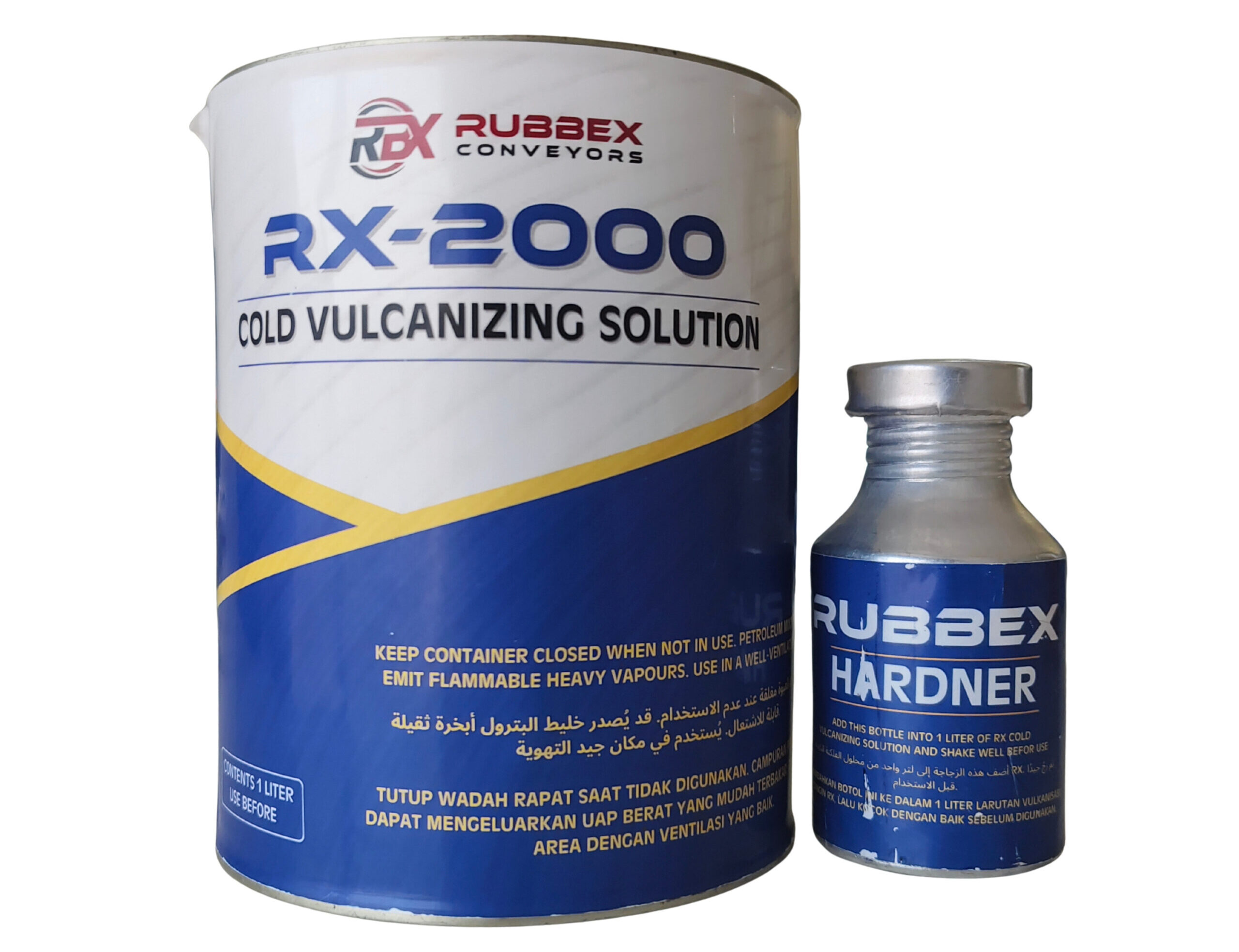

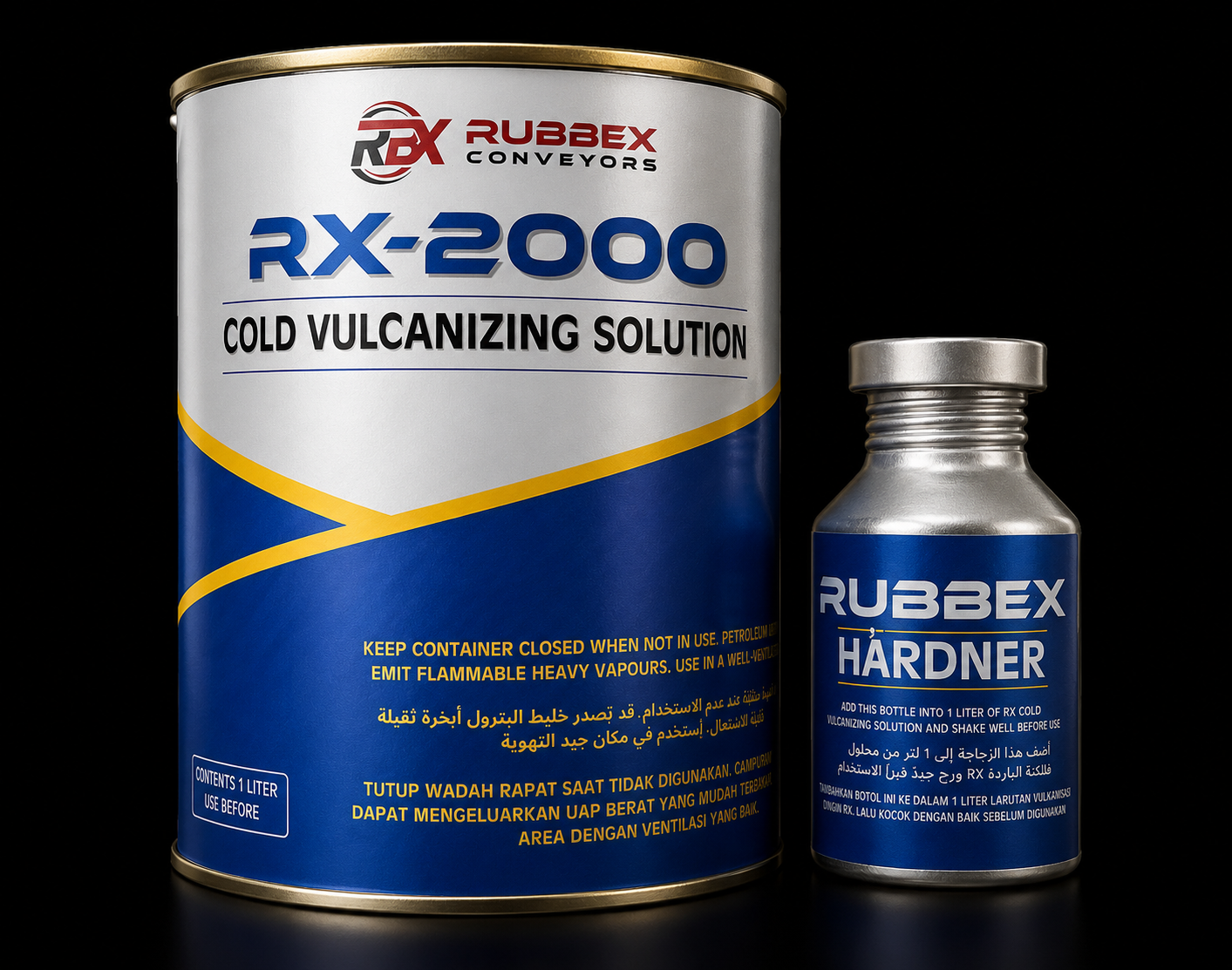

RX-2000 - COLD
Cold Vulcanizing Solution is a two-component adhesive system consisting of a bonding solution and a hardener. It allows strong rubber bonding at room temperature, eliminating the need for heat or vulcanizing presses.
Extended Shelf Life – 14 Months Shelf Life
Superior Splicing Strength – High Bonding & Peel Strength
Minimizing Downtime – Fast Dispatch Commitment
After-Sales Support – Expert Application Guidance
