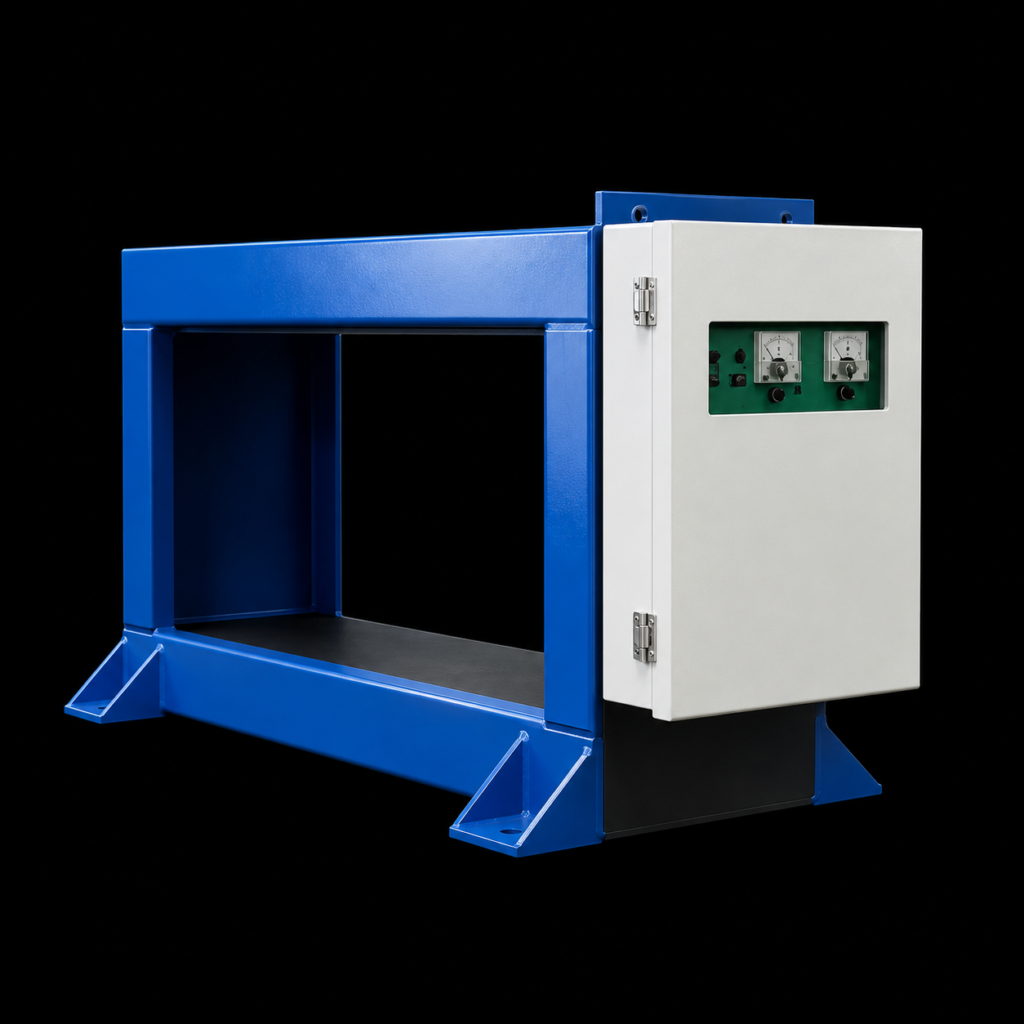

Metal Detector

A mining conveyor metal detector is a specialized device used in mining operations to detect the presence of metal contaminants in materials being transported on conveyor belts. These detectors are crucial for protecting downstream equipment, such as crushers, mills, and other processing machinery, from damage caused by metallic objects, such as broken tools, machinery parts, or other debris that might accidentally enter the material stream.

The metal detector works by generating a magnetic field that surrounds the conveyor belt. As materials pass through the detector, any metal objects present will disrupt the magnetic field, triggering an alarm or stopping the conveyor automatically. This allows operators to remove the metal contaminants before they cause damage, ensuring the smooth operation and longevity of mining equipment.

Features

Sensitivity is adjustable, high sensitivity designed to detect large metal, with sound and light alarm.
Detection range : iron, aluminium, stainless steel, alloys, and other metals.
Control output : relay contact pair of normally open, pair of normally closed
Timing function : after relay pull-in delay release, delay time of 1-10 seconds.
The amplitude of the belt conveyor frame is less than 0.5mm: can be mounted directly on the belt conveyor frame, if the amplitude more than 0.5mm, should reprovision mounting bracket.
The input voltage AC200V + 10V, assemble regulated power supply if the supply voltage exceeds this value

Magnetic Separator

RBYD

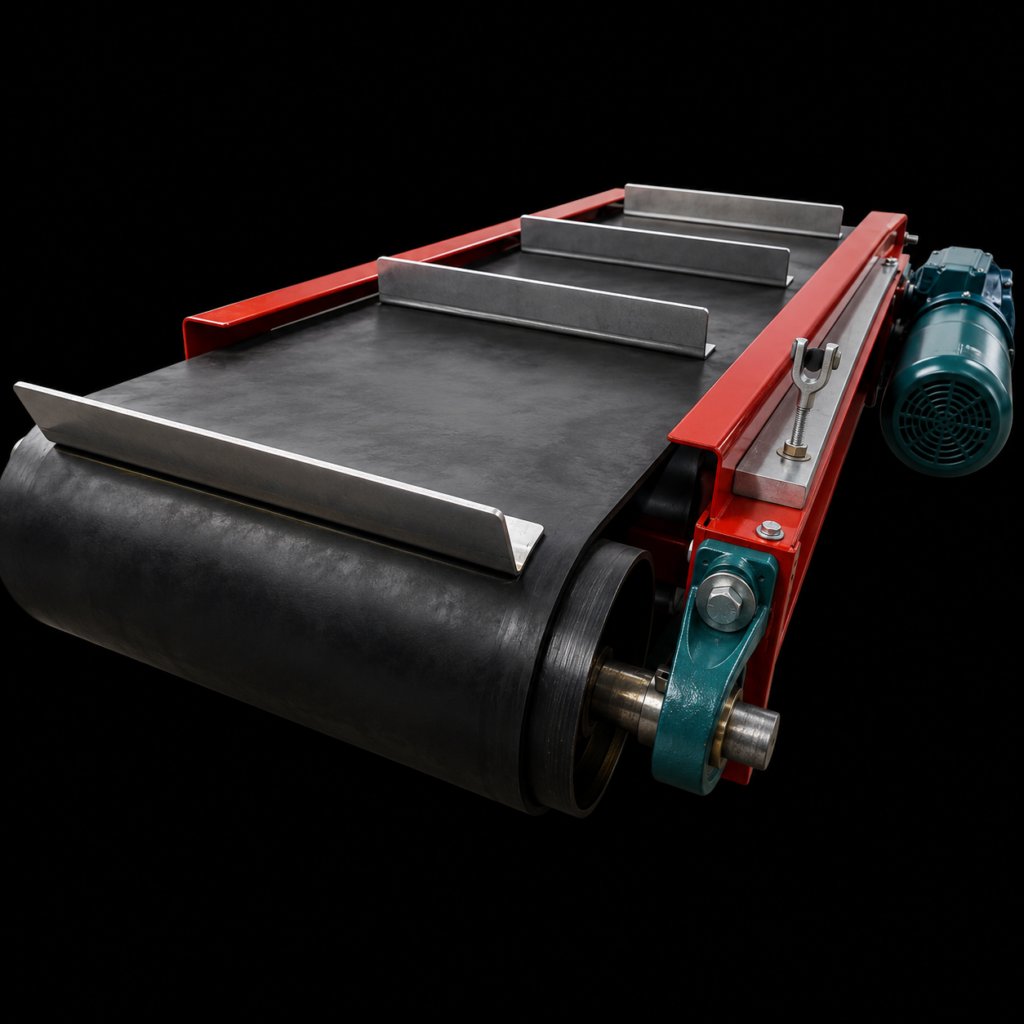

RBYD(C) series self-cleaning permanent magnetic separator made by high- performance NdFeb rare earth, the machine consists of permanent magnet core, unloading iron belt, reducer motor, frame, driven rollers and other parts, used for variety of conveyor. Adsorb ferromagnetic material from a non-magnetic materials. It have an automatic unloading iron device, The ferromagnetic material is automatically thrown by unloading iron belt device so as to achieve the purpose of the automatic unloading iron. The machine have a wide range of applications, energy saving, easy maintenance, the failure rate is very low, stable and reliable operation in extremely harsh environment.

RBDB

series dry electromagnetic separator (also known as PDC series, RBDY series) pick up the miscellaneous iron from the non-magnetic materials of powder or lump. its internal is filled by electrical casting resin, self-cooling hermetically sealed structure. Have heavy depth of penetration of magnetic field, strong suction, dust-proof, water-resistant, corrosion-resistant features, and reliable operation even in extremely harsh environments. The main performance indicators are above the JB/T7689-2012 standard, the products can remove the 0.1-50kg ferromagnetic substances.

RBYB

Series suspended permanent magnetic separators are designed by advanced computer simulation, it have the perfect double-pole structure so that effectively guaranteeing the maximum adsorption capacity of iron debris withing the working distance, internal magnetic material is made by high-strength rare earth neodymium, NdFeB is high purity, high magnetic intensity, this equipment can easily pick up the iron debris. has maintenance-free, long life, easy to install, easy to use, reliable operation and other characteristics, suitable for belt conveyor, vibrating conveyor, electromagnetic vibrating feeder, non-magnetic materials chute, adsorptive capacity from 0.1 to 35kg of ferromagnetic material internal permanent magnet system life is more 10 years, the whole optimization design, the inner core is perfused by resin, good sealing, oxidation protection, the consumption for magnetic force does not exceed 4% within 10 years. the technical indicators meet the JB/T8711-2006 standard.
