Rubbex Belt Cleaners

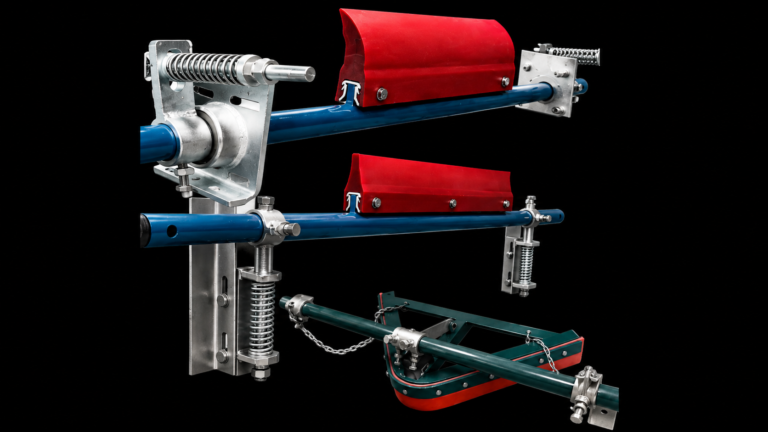

Primary Belt Cleaner
Primary belt cleaner is designed able to clean up 90% carry back, and secondary 10% carry back. Blade material is polyurethane safe for the belt, more resistant to wear, able to maintain shape compared to other materials
A Primary Belt Cleaner is a critical component in conveyor belt systems, mounted at the head pulley (discharge point) to scrape off most of the bulk material stuck on the conveyor belt. It ensures that residual carryback doesn’t cause material buildup, belt misalignment, or increased maintenance.
Function & Importance
| Purpose | Impact |
|---|---|
|
Remove bulk material carryback |
Reduces spillage, improves belt tracking and cleaning efficiency |
|
Prevent material buildup on pulleys |
Reduces wear, slippage, and potential belt damage |
|
Improve workplace safety |
Keeps surrounding area clean and reduces risk of slips and contamination |
|
Lower maintenance cost |
Less cleaning required, reduced downtime and labor |
|
Extend belt & pulley lifespan |
Prevents damage from material abrasion or buildup |
Construction & Material
- Blade (Scraper) – Made from polyurethane, tungsten carbide, or stainless steel.
- Mounting Pole – Structural steel or aluminum; holds scraper across the full belt width.
- Tensioning System – Spring, pneumatic, or mechanical tensioners to maintain constant cleaning pressure.
- Mounting Location – Positioned directly after the head pulley, contacting the belt surface before it curves downward.
Types of Primary Belt Cleaners (Based on Blade Material)
| Type | Blade Material | Use Case |
|---|---|---|
|
Polyurethane Blade |
Flexible, wear-resistant PU |
Ideal for light- to medium-duty applications; safe for belt and splices |
|
Tungsten Carbide Blade |
Tungsten carbide tips |
Used in heavy-duty, high-speed, or abrasive material applications |
|
Hybrid Blade |
PU + tungsten insert |
Combines durability with belt safety for balanced performance |
|
Stainless Steel Blade |
Full stainless build |
For highly corrosive, hygienic, or food-grade applications |
A conveyor belt scraper is designed to remove bulk material that remains stuck on the belt after discharge, preventing carryback and maintaining a clean conveying system. These scrapers typically feature blades made from polyurethane (PU), tungsten carbide, or stainless steel, chosen for their durability and wear resistance. They are equipped with various tensioning systems such as spring, pneumatic, torque arm, or mechanical designs to ensure consistent pressure and optimal cleaning performance. Mounted just after the head pulley, the scraper effectively cleans the belt surface before it returns, resulting in a cleaner system, reduced equipment wear, enhanced safety, and improved overall efficiency.
Rubbex Belt Cleaners
Secondary Belt Cleaner
Secondary cleaners are belt cleaners that are built to scrape materials left on the belt beyond the head pulley. Secondary cleaners are located just past where the belt leave the head pulley, and anywhere else down the beltline. Secondary cleaners are especially good at removing fines and can increase cleaning efficiency to more than 90%. Flexco secondary cleaners handle a variety of applications, with polyurethane, carbide, and brush options available.
Using secondary cleaners on conveyor systems offers several significant advantages. They ensure a cleaner return side of the belt, which minimizes material buildup on idlers and pulleys, reducing unnecessary wear. This leads to longer belt life, as abrasive carryback is prevented from grinding against the belt surface. Maintenance frequency is also lowered, as less cleaning and repair downtime is required. In addition, secondary cleaners contribute to improved safety and hygiene—particularly important in food processing, pharmaceutical, and wet material handling environments. Furthermore, a cleaner belt enhances the effectiveness of skirting systems at transfer points, ensuring better sealing and reducing spillage.

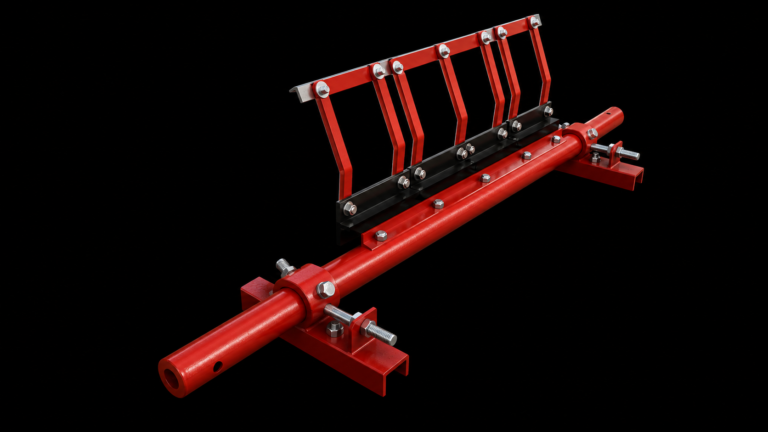

V-Plough Cleaner
A V-Plough Cleaner (also called V-Plow Belt Cleaner) is a belt protection device mounted on the return side of the conveyor, in front of the tail pulley. Its main role is to deflect or remove loose material, debris, or spillage from the inside surface of the return belt before it reaches and damages the tail pulley or other components.
Purpose & Importance of Conveyor Ploughs
- Removes trapped debris or lumps – Prevents damage to tail pulley, lagging, and bearing housings.
- Protects tail pulley and idlers – Eliminates risk of belt mis-tracking caused by buildup or wedged material.
- Increases equipment lifespan – Reduces premature wear on the belt and pulleys.
- Reduces maintenance downtime – Keeps the return belt clean and prevents unplanned stoppages.
- Works with other cleaners – Functions before primary and secondary belt cleaners to assist in material removal.
